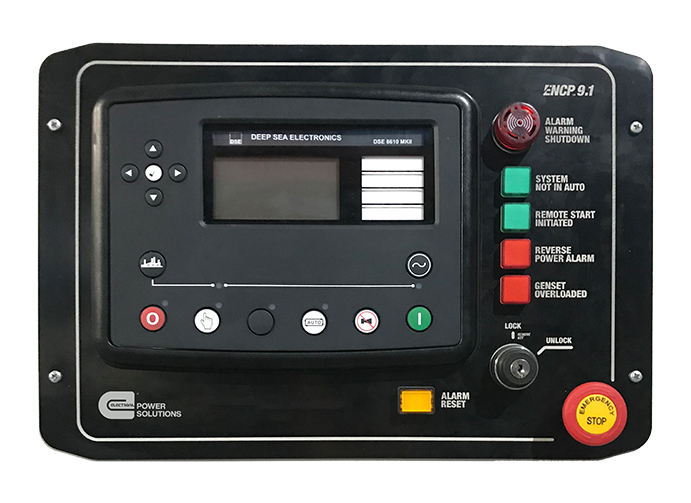

ENCP 9.1

Overview

The ENCP 9.1 is an easy to use Auto Start Generator Paralleling Control System suitable for use in a multi-generator load share system, designed to synchronize up to 32 generators including electronic and non-electronic engines.

The ENCP 9.1 Monitors the generator and indicates operational status and fault conditions, automatically starting or stopping the engine on load demand or fault condition.

System alarms are annunciated on the LCD screen (multiple language options available), illuminated LED and audible sounder.

The event log will record 250 events to facilitate easy maintenance, and an extensive number of fixed and flexible monitoring, metering and protection features are included.

Designed to offer increased built in support for active sensors for 0 V to 10 V & 4 mA to 20 mA. Comprehensive communication and system expansion options are available.

With all communication ports capable of being active at the same time, the ENCP 9.1 is ideal for a wide variety of demanding load share applications.

LOAD SHARING FEATURES

Peak lopping/sharing (when used with ENCP 9.3 Controller).

Sequential set start.

Manual voltage/frequency adjustment.

R.O.C.O.F. and vector shift protection.

Generator load demand.

Automatic hours run balancing.

Mains (Utility) decoupling.

Mains (Utility) decoupling test mode.

Dead bus sensing.

Bus failure detection.

Direct Governor and AVR control.

Volts and frequency matching.

kW and kVAr load sharing.

Dead bus synchronizing.

FEATURES

De-rate capability.

Display sets on load on the LCD display.

Power curve simulation.

Configurable engine icons.

Serial port settings within the front panel editor.

Drag and drop advanced PLC editor.

Type 1 fully flexible inputs.

Two RS485 ports.

Three CAN ports.

32-set Synchronization.

(12/8) Configurable inputs/outputs.

Dead bus sensing.

Remote communications (RS232, RS485, Ethernet).

Direct governor and AVR controls.

kW & kVAr load sharing.

(250) Configurable event log.

Load switching, load shedding & dummy load outputs.

Power monitoring (kWh, kVAr, kVAh, kVArh), reverse power protection, kW overload protection.

Data logging (USB Memory Stick).

Tier 4F Stage V CAN engine support.

Sophisticated emission control with DPF regeneration & soot capture.

Separate ramp up and ramp down rates configurable via PLC.

In-built SNMP.

Configurable CAN transmit and receive.

Sophisticated data logging.

Support for 0 V to 20 V and 4 mA to 20 mA sensors.

BENEFITS

The DTC related icon screen is user configurable. The user has the option to define the icons and conditions.

RS232 and RS485 settings for Slave ID and Baud Rate have been added to the front panel editor. A new page “Editor - Communications” has been added which contains 4 screens (RS232 Baud, RS232 Slave ID, RS485 Baud, RS485 Slave ID).

The PLC editor has been completely redesigned. It has a brand-new look and feel and offers enhanced functionality for the user.

Fully flexible inputs for configuration as voltage, current or resistive.

Aids communication with electronic engines and building management systems.

Offers optimum flexibility for system expansion.

Provides multiple installation options.

Provides rapid power delivery on multi-set systems.

Provides secure and simple off-site monitoring. All ports are continuously active.

Eliminates the requirement for external control equipment.

Provides controlled power delivery.

Provides access to historical alarms and operational status.

Allows load options and dummy load requirements to be independently controlled.

Provides clear accurate power measurement information.
